Vue3 Transfer

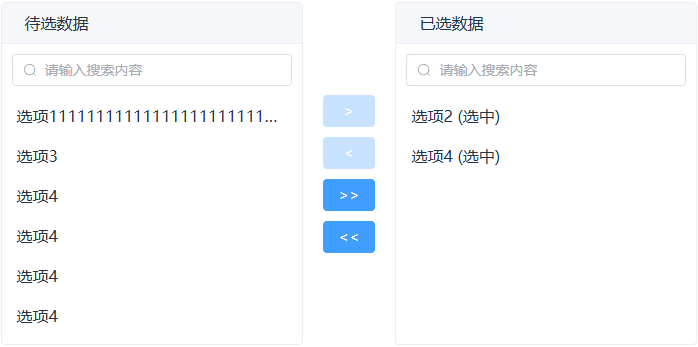

Vue3基于element-plus自建Transfer组件

<script setup lang="ts">
import { ref, computed, onMounted, watch } from 'vue'
import { Search } from '@element-plus/icons-vue'

const props = defineProps({
  // 数据相关
  data: { type: Array, default: () => [] }, // 全局数据
  checkedData: { type: Array, default: () => [] }, // 选中数据
  rightShowData: { type: Array, default: () => [] }, // 右侧显示数据
  valueKey: { type: String, default: 'key' }, // value的key
  labelKey: { type: String, default: 'label' }, // label的key
  showTitleKey: { type: String, default: 'label' }, // 鼠标移上去显示的key
  rightMaxCount: { type: [Number, null], default: null }, // 最大选择数量

  // 显示控制
  showHeader: { type: Boolean, default: false }, // 是否显示头部
  showLeftCheckbox: { type: Boolean, default: false }, // 左侧是否显示checkbox
  showRightCheckbox: { type: Boolean, default: false }, // 右侧是否显示checkbox
  showLeftHeaderCheckbox: { type: Boolean, default: false }, // 左侧是否显示头部的checkbox
  showRightHeaderCheckbox: { type: Boolean, default: false }, // 右侧是否显示头部的checkbox
  showHeaderCount: { type: Boolean, default: false }, // 是否显示头部的count
  showCheckBg: { type: Boolean, default: false }, // 是否显示选中时的背景颜色
  showCheckBorder: { type: Boolean, default: false }, // 是否显示选中时的边框颜色
  filterable: { type: Boolean, default: false }, // 是否显示搜索框
  filterPlaceholder: { type: String, default: '请输入搜索内容' }, // 搜索框的placeholder
  flexDirection: { type: String, default: 'horizontal', validator: (v: string) => ['vertical', 'horizontal'].includes(v) }, // 整个transfer的排列方向
  buttonDirection: { type: String, default: 'vertical', validator: (v: string) => ['vertical', 'horizontal'].includes(v) }, // 按钮的排列方向
  showAddAll: { type: Boolean, default: true }, // 是否显示全部按钮
  disabled: { type: Boolean, default: false }, // 是否禁用整个Transfer

  // 样式自定义
  checkedBgColor: { type: String, default: '#F5F7FA' }, // 选中时的背景颜色
  checkedBorderColor: { type: String, default: '#409EFF' }, // 选中时的边框颜色
  checkedTextColor: { type: String, default: '#666666' }, // 选中时的文字颜色
  headerCheckboxClass: String, // 头部checkbox的class
  transferItemClass: String, // transferItem的class
  filterClass: String, // 搜索框的class
  scrollbarClass: String, // scrollbar的class
  buttonTexts: {
    type: Array,
    default: () => ['右移', '左移', '全部右移', '全部左移']
  }, // 按钮的文字[右移, 左移, 全部右移, 全部左移]，[下移, 上移, 全部下移, 全部上移]
  titles: { type: Array, default: () => ['列表1', '列表2'] }, // 标题
  emptyTexts: { type: Array, default: () => ['无数据', '无数据'] }, // 空状态的文字
  panelItemWidth: { type: String, default: '100%' }, // transferItem的宽度
  panelItemHeight: { type: String, default: '40px' }, // transferItem的高度
  panelWidth: { type: String, default: '250px' }, // transferPanel的宽度
  panelBodyHeight: { type: String, default: '300px' }, // transferPanel的body高度
})

// 事件
const emit = defineEmits(['dataChange', 'checkedChange', 'filterChange'])

// 数据状态
const leftData = ref<any>([])
const rightData = ref<any>([])
const leftChecked = ref<any>([])
const rightChecked = ref<any>([])
const leftQuery = ref('')
const rightQuery = ref('')

// 计算属性
const leftFilteredData = computed(() => filterData(leftData.value, leftQuery.value, 'left'))
const rightFilteredData = computed(() => props.rightShowData.length ? props.data.filter((item: any) => props.rightShowData.includes(item[props.valueKey])) : filterData(rightData.value, rightQuery.value, 'right'))

/**
 * 左侧checkbox全选状态
 */
const leftCheckedAll = computed({
  get: () => leftChecked.value.length !== 0 && leftChecked.value.length === leftFilteredData.value.length,
  set: val => val ? selectAll('left') : leftChecked.value = []
})

/**
 * 右侧checkbox全选状态
 */
const rightCheckedAll = computed({
  get: () => rightChecked.value.length !== 0 && rightChecked.value.length === rightFilteredData.value.length,
  set: val => val ? selectAll('right') : rightChecked.value = []
})

/**
 * 左侧checkbox半选状态
 */
const leftIndeterminate = computed(() => leftChecked.value.length && !leftCheckedAll.value)

/**
 * 右侧checkbox半选状态
 */
const rightIndeterminate = computed(() => rightChecked.value.length > 0 && !rightCheckedAll.value)

/**
 * 过滤数据
 */
const filterData = (data: Array<any>, query: string, direction: string) => {
  if (!query) return data
  direction === 'left' ? leftChecked.value = [] : rightChecked.value = []
  return data.filter(item =>
    item[props.labelKey].toLowerCase().includes(query.toLowerCase())
  )
}

/**
 * 左右移动
 */
const moveTo = (direction: string) => {
  const source = direction === 'right' ? leftChecked.value : rightChecked.value
  const target = direction === 'right' ? rightData.value : leftData.value
  const sourceData = direction === 'right' ? leftData.value : rightData.value

  const moved = sourceData.filter(item =>
    source.includes(item[props.valueKey])
  )
  const remaining = sourceData.filter(item =>
    !source.includes(item[props.valueKey])
  )

  if (direction === 'right') {
    leftData.value = [...remaining]
    // 限制右侧数据数量不超过maxItem
    if (props.rightMaxCount !== null) {
      // 修改：确保右侧保留最新的数据，将超出的数据放回左侧
      const newData = [...moved, ...target]
      if (newData.length > props.rightMaxCount) {
        rightData.value = newData.slice(0, props.rightMaxCount)
        const overflow = newData.slice(props.rightMaxCount)
        leftData.value = [...overflow, ...leftData.value]
      } else {
        rightData.value = newData
      }
    } else {
      rightData.value = [...moved, ...target]
    }
  } else {
    rightData.value = [...remaining]
    leftData.value = [...moved, ...target]
  }
  leftChecked.value = []
  rightChecked.value = []
  emitChange("move_" + direction)
}

/**
 * 全部左右移动
 */
const moveAll = (direction: string) => {
  if (direction === 'right') {
    // 限制右侧数据数量不超过maxItem
    if (props.rightMaxCount !== null) {
      // 修改：确保右侧保留最新的数据，将超出的数据放回左侧
      const newData = [...leftData.value, ...rightData.value]
      if (newData.length > props.rightMaxCount) {
        rightData.value = newData.slice(0, props.rightMaxCount)
        const overflow = newData.slice(props.rightMaxCount)
        leftData.value = [...overflow]
      } else {
        rightData.value = newData
        leftData.value = []
      }
    } else {
      rightData.value = [...leftData.value, ...rightData.value]
      leftData.value = []
    }
  } else {
    leftData.value = [...rightData.value, ...leftData.value]
    rightData.value = []
  }
  rightChecked.value = []
  leftChecked.value = []
  emitChange("move_all_" + direction)
}

/**
 * 全选
 */
const selectAll = (direction: string) => {
  const keys = direction === 'left'
    ? leftFilteredData.value.map(i => i[props.valueKey])
    : rightFilteredData.value.map(i => i[props.valueKey])

  if (direction === 'left') {
    leftChecked.value = [...new Set([...leftChecked.value, ...keys])]
    emit('checkedChange', leftChecked.value, 'left')
  } else {
    rightChecked.value = [...new Set([...rightChecked.value, ...keys])]
    emit('checkedChange', rightChecked.value, 'right')
  }
}

/**
 * 判断是否选中 左
 */
const isLeftChecked = (item: object) => {
  return leftChecked.value.includes(item[props.valueKey])
}

/**
 * 判断是否选中 右
 */
const isRightChecked = (item: object) => {
  return rightChecked.value.includes(item[props.valueKey])
}

/**
 * 点击transferItem
 */
const handleItemClick = (item: object, direction: string, event: any) => {
  if (props.disabled) return
  event.stopPropagation() // 防止事件冒泡

  const key = item[props.valueKey]
  const isChecked = direction === 'left'
    ? leftChecked.value.includes(key)
    : rightChecked.value.includes(key)

  if (isChecked) {
    // 如果已选中，则移除
    if (direction === 'left') {
      leftChecked.value = leftChecked.value.filter(k => k !== key)
    } else {
      rightChecked.value = rightChecked.value.filter(k => k !== key)
    }
  } else {
    // 如果未选中，则添加
    if (direction === 'left') {
      leftChecked.value = [...leftChecked.value, key]
    } else {
      rightChecked.value = [...rightChecked.value, key]
    }
  }
  emit('checkedChange', direction === 'left' ? leftChecked.value : rightChecked.value, direction)
}

/**
 * 触发change事件
 */
const emitChange = (duration: string) => {
  emit('dataChange', leftData.value, rightData.value, duration)
}

/**
 * 过滤数据 左
 */
const handleLeftFilter = () => {
  emit('filterChange', 'left', leftQuery.value)
}

/**
 * 过滤数据 右
 */
const handleRightFilter = () => {
  emit('filterChange', 'right', rightQuery.value)
}

watch(() => props.data, (newData) => {
  if (newData && newData.length > 0) {
    leftData.value = newData.filter((item: any) => !props.checkedData.includes(item[props.valueKey]))
    rightData.value = newData.filter((item: any) => props.checkedData.includes(item[props.valueKey]))
  } else {
    leftData.value = []
    rightData.value = []
  }
})

/**
 * 初始化数据
 */
onMounted(() => {
  leftData.value = props.data.filter((item: any) => !props.checkedData.includes(item[props.valueKey]))
  rightData.value = props.data.filter((item: any) => props.checkedData.includes(item[props.valueKey]))
})

const resetLeftChecked = () => {
  leftChecked.value = []
}

const resetRightChecked = () => {
  rightChecked.value = []
}

defineExpose({
  resetRightChecked,
  resetLeftChecked
})
</script>

<template>
  <div class="basic-transfer" :style="{ flexDirection: flexDirection === 'horizontal' ? 'row' : 'column' }">
    <!-- 禁用状态 -->
    <div v-if="disabled" class="basic-transfer__disabled"></div>
    <!-- 左侧面板 -->
    <div class="transfer-panel" :style="{ width: panelWidth }">
      <!-- 额外头部内容 -->
      <div v-if="$slots['left-header-ex']" class="transfer-panel__header-ex">
        <slot name="left-header-ex"></slot>
      </div>
      <!-- 主要内容 -->
      <div class="transfer-panel__main-container">
        <!-- 头部 -->
        <div v-if="showHeader" class="transfer-panel__header">
          <div class="transfer-panel__header-title" :style="{ width: showHeaderCount ? '92%' : '100%' }">
            <el-checkbox v-if="showLeftHeaderCheckbox" v-model="leftCheckedAll" :indeterminate="leftIndeterminate"
              :disabled="disabled" :class="headerCheckboxClass" />
            <div :style="{ display: !showLeftHeaderCheckbox && showLeftCheckbox ? 'block' : 'none', width: '14px' }">
               
            </div>
            <span class="transfer-panel__header-text">
              {{ (!showLeftHeaderCheckbox && showLeftCheckbox) || showLeftHeaderCheckbox ? ' ' : '' }}
              <slot name="left-title">
                {{ titles[0] }}
              </slot>
            </span>
          </div>

          <div class="transfer-panel__header-count" v-if="showHeaderCount">
            <slot name="left-header-count" :count="leftData.length" :checked-count="leftChecked.length">
              {{ leftChecked.length }} / {{ leftData.length }}
            </slot>
          </div>
        </div>

        <!-- 内容区域 -->
        <div class="transfer-panel__body" :style="{ height: panelBodyHeight }">
          <!-- 搜索框 -->
          <div v-if="filterable" class="transfer-panel__filter">
            <el-input v-model="leftQuery" :placeholder="filterPlaceholder" :class="['flter-default', filterClass]"
              :disabled="disabled" clearable @input="handleLeftFilter">
              <template #prefix>
                <slot name="left-filter-prefix">
                  <el-icon>
                    <search />
                  </el-icon>
                </slot>
              </template>
            </el-input>
          </div>

          <!-- 列表内容 -->
          <el-scrollbar v-if="leftFilteredData.length > 0" class="transfer-panel__list"
            :wrap-class="`scrollbar-wrapper ${scrollbarClass}`">
            <el-checkbox-group v-model="leftChecked" :disabled="disabled"
              :max="rightMaxCount !== null ? rightMaxCount : 9999" :min="0">
              <el-checkbox v-for="item in leftFilteredData" :key="item[valueKey]" :value="item[valueKey]"
                :class="['transfer-panel__item', transferItemClass, !showLeftCheckbox ? 'no-before-check' : '']" :style="{
                  backgroundColor: showCheckBg && isLeftChecked(item) ? checkedBgColor : '',
                  color: showCheckBg && isLeftChecked(item) ? checkedTextColor : '',
                  borderColor: showCheckBorder && isLeftChecked(item) ? checkedBorderColor : '',
                  width: panelItemWidth,
                  height: panelItemHeight
                }">
                <div :style="{ width: showHeaderCount ? '92%' : '100%' }">
                  <slot name="left-item" :item="item">
                    <span class="item-text" :title="item[showTitleKey]">{{ item[labelKey] }}</span>
                  </slot>
                </div>
                <div></div>
              </el-checkbox>
            </el-checkbox-group>
          </el-scrollbar>

          <!-- 空状态 -->
          <div v-else class="transfer-panel__empty">
            <slot name="left-empty">
              <img src="@/assets/image/public/d_noData.png" style="width: 90px; height: 90px;" class="inline-block"
                alt="{{ emptyTexts[0] }}" />
              <div>{{ emptyTexts[0] }}</div>
            </slot>
          </div>

          <!-- 底部插槽 -->
          <div v-if="$slots['left-footer']" class="transfer-panel__footer">
            <slot name="left-footer"></slot>
          </div>
        </div>
      </div>
    </div>

    <!-- 操作按钮 -->
    <div class="transfer-buttons" :class="buttonDirection">
      <el-button type="primary" :disabled="disabled || leftChecked.length === 0" @click="moveTo('right')">
        <slot name="right-button">{{ buttonTexts[0] }}</slot>
      </el-button>
      <el-button type="primary" :disabled="disabled || rightChecked.length === 0" @click="moveTo('left')">
        <slot name="left-button">{{ buttonTexts[1] }}</slot>
      </el-button>
      <el-button v-if="showAddAll" type="primary" :disabled="disabled || leftData.length === 0"
        @click="moveAll('right')">
        <slot name="right-all-button">{{ buttonTexts[2] }}</slot>
      </el-button>
      <el-button v-if="showAddAll" type="primary" :disabled="disabled || rightData.length === 0"
        @click="moveAll('left')">
        <slot name="left-all-button">{{ buttonTexts[3] }}</slot>
      </el-button>
    </div>

    <!-- 右侧面板 -->
    <div class="transfer-panel" :style="{ width: panelWidth }">
      <!-- 额外头部内容 -->
      <div v-if="$slots['right-header-ex']" class="transfer-panel__header-ex">
        <slot name="right-header-ex"></slot>
      </div>
      <!-- 主要内容 -->
      <div class="transfer-panel__main-container">
        <!-- 头部 -->
        <div v-if="showHeader" class="transfer-panel__header">
          <div class="transfer-panel__header-title" :style="{ width: showHeaderCount ? '92%' : '100%' }">
            <el-checkbox v-if="showRightHeaderCheckbox" v-model="rightCheckedAll" :indeterminate="rightIndeterminate"
              :disabled="disabled" :class="headerCheckboxClass" />
            <div :style="{ display: !showRightHeaderCheckbox && showRightCheckbox ? 'block' : 'none', width: '14px' }">
               
            </div>
            <span class="transfer-panel__header-text">
              {{ (!showRightHeaderCheckbox && showRightCheckbox) || showRightHeaderCheckbox ? ' ' : '' }}
              <slot name="right-title">
                {{ titles[1] }}
              </slot>
            </span>
          </div>

          <div class="transfer-panel__header-count" v-if="showHeaderCount">
            <slot name="right-header-count" :count="rightData.length" :checked-count="rightChecked.length">
              {{ rightChecked.length }} / {{ rightData.length }}
            </slot>
          </div>
        </div>

        <!-- 内容区域 -->
        <div class="transfer-panel__body" :style="{ height: panelBodyHeight }">
          <!-- 搜索框 -->
          <div v-if="filterable" class="transfer-panel__filter">
            <el-input v-model="rightQuery" :placeholder="filterPlaceholder" :class="['flter-default', filterClass]"
              :disabled="disabled" clearable @input="handleRightFilter">
              <template #prefix>
                <slot name="right-filter-prefix">
                  <el-icon>
                    <search />
                  </el-icon>
                </slot>
              </template>
            </el-input>
          </div>

          <!-- 列表内容 -->
          <el-scrollbar v-if="rightFilteredData.length > 0" class="transfer-panel__list"
            :wrap-class="`scrollbar-wrapper ${scrollbarClass}`">
            <el-checkbox-group v-model="rightChecked" :disabled="disabled"
              :max="rightMaxCount !== null ? rightMaxCount : 9999" :min="0">
              <el-checkbox v-for="item in rightFilteredData" :key="item[valueKey]" :value="item[valueKey]"
                :class="['transfer-panel__item', transferItemClass, !showRightCheckbox ? 'no-before-check' : '']"
                :style="{
                  backgroundColor: showCheckBg && isRightChecked(item) ? checkedBgColor : '',
                  color: showCheckBg && isRightChecked(item) ? checkedTextColor : '',
                  borderColor: showCheckBorder && isRightChecked(item) ? checkedBorderColor : '',
                  width: panelItemWidth,
                  height: panelItemHeight
                }">
                <div :style="{ width: showHeaderCount ? '92%' : '100%' }">
                  <slot name="right-item" :item="item">
                    <span class="item-text" :title="item[showTitleKey]">{{ item[labelKey] }}</span>
                  </slot>
                </div>
                <div></div>
              </el-checkbox>
            </el-checkbox-group>
          </el-scrollbar>

          <!-- 空状态 -->
          <div v-else class="transfer-panel__empty">
            <slot name="right-empty">
              <img src="@/assets/image/public/d_noData.png" style="width: 90px; height: 90px;" class="inline-block"
                alt="{{ emptyTexts[1] }}" />
              <div>{{ emptyTexts[1] }}</div>
            </slot>
          </div>

          <!-- 底部插槽 -->
          <div v-if="$slots['right-footer']" class="transfer-panel__footer">
            <slot name="right-footer"></slot>
          </div>
        </div>
      </div>
    </div>
  </div>
</template>

<style scoped>
.basic-transfer {
  display: flex;
  align-items: center;
  justify-content: center;
  position: relative;
}

.transfer-panel {
  width: 250px;
}

.transfer-panel__main-container {
  border: 1px solid #DEE4EC;
  border-radius: 4px;
  background: #FFF;
  box-sizing: border-box;
}

.transfer-panel__header {
  height: 40px;
  padding: 0 15px;
  background: #F5F7FA;
  display: flex;
  align-items: center;
  justify-content: space-between;
  border-bottom: 1px solid #DEE4EC;
}

.transfer-panel__header-title {
  display: flex;
  align-items: center;

  .transfer-panel__header-text {
    display: flex;
    align-items: center;
    width: 100%;
  }
}

.transfer-panel__header-count {
  width: 8%;
  font-size: 12px;
}

.transfer-panel__body {
  display: flex;
  flex-direction: column;
}

.transfer-panel__filter {
  padding: 10px;
}

.flter-default {
  width: 100%;
}

.transfer-panel__list {
  flex: 1;
  overflow: auto;
}

.transfer-panel__item {
  padding: 4px 15px;
  cursor: pointer;
  transition: all 0.3s;
  display: flex;
  align-items: center;
  justify-content: flex-start;
  box-sizing: border-box;
  border: 1px solid transparent;
  line-height: 15px;
}

.transfer-panel__item:hover {
  background-color: #f5f7fa;
}

.transfer-panel__item.is-checked {
  /* background-color: v-bind(checkedBgColor);
    border: 1px solid v-bind(checkedBorderColor); */
  box-sizing: border-box;
}

.item-text {
  width: 100%;
  overflow: hidden;
  text-overflow: ellipsis;
  white-space: nowrap;
  display: inline-block;
  height: 20px;
  line-height: 20px;
}

.transfer-buttons {
  padding: 0 20px;
  display: flex;
  flex-direction: column;
  gap: 10px;
}

.transfer-buttons.horizontal {
  flex-direction: row;
  align-items: center;
}

.transfer-panel__empty {
  height: 100%;
  display: flex;
  flex-direction: column;
  justify-content: center;
  align-items: center;
  color: #909399;
}

.transfer-panel__footer {
  border-top: 1px solid #DEE4EC;
  background-color: #F5F7FA;
}

.basic-transfer__disabled {
  background-color: rgba(255, 255, 255, .5);
  cursor: not-allowed;
  width: 100%;
  height: 100%;
  position: absolute;
  top: 0;
  left: 0;
  z-index: 1;
}

:deep() {

  .vertical,
  .horizontal {
    .el-button {
      margin-left: 0px;
    }
  }

  .el-checkbox {
    margin-right: 0px;

    .el-checkbox__label {
      color: unset !important;
      width: calc(100% - 14px);
    }
  }

  .no-before-check {
    .el-checkbox__input {
      display: none;
    }

    .el-checkbox__label {
      color: unset !important;
      width: 100%;
    }
  }
}
</style>

属性

事件

插槽

引用

<script setup>
  import { ref } from 'vue'
  import BasicTransfer from './BasicTransfer.vue'

  const transferData = ref([
    { key: '1', label: '选项111111111111111111111111111111', value: 'A' },
    { key: '2', label: '选项2', value: 'B' },
    { key: '3', label: '选项3', value: 'C' },
    { key: '4', label: '选项4', value: 'D' },
    { key: '5', label: '选项4', value: 'D' },
    { key: '6', label: '选项4', value: 'D' },
    { key: '7', label: '选项4', value: 'D' },
    { key: '8', label: '选项4', value: 'D' },
    { key: '9', label: '选项4', value: 'D' },
    { key: '10', label: '选项4', value: 'D' },
    { key: '11', label: '选项4', value: 'D' },
    { key: '12', label: '选项4', value: 'D' },
    { key: '13', label: '选项4', value: 'D' },
  ]);
</script>

<template>
  <BasicTransfer :data="transferData" :checkedInitData="['2', '4']" leftTitle="待选数据" rightTitle="已选数据"
    :showHeaderCheckbox="false" :showCheckbox="false" panelItemWidth="300px" :buttonTexts="['>', '<', '>>', '<<']"
    panelWidth="300px" @change="(data1, data2) => console.log(data1, data2)">
    <!-- 自定义左侧面板的数据项展示内容 -->
    <!-- <template #left-item="{ item }">
      <span>{{ item.label }} - {{ item.value }}</span>
    </template> -->

    <!-- 自定义右侧面板的数据项展示内容 -->
    <template #right-item="{ item }">
      <span>{{ item.label }} (选中)</span>
    </template>
  </BasicTransfer>
</template>

<style scoped>

</style>

更新

• 2025-09-17 全部使用 checkgroup 作为列表子项，通过设置 rightMaxCount 控制左侧可选数量，优化样式。
